Micro Filter

Product Description

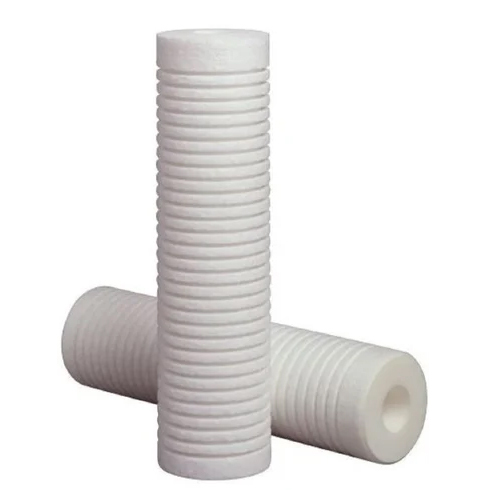

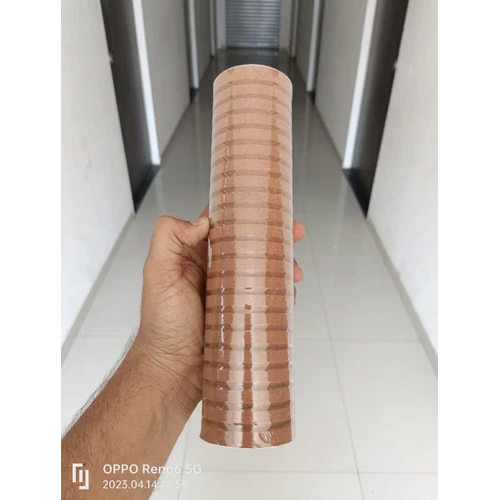

Resin-bonded filter cartridges are a type of filtration element typically used for removing particulates from liquids or gases. These cartridges are made by combining filter media with a resin binder that is typically thermoset or thermoplastic in nature. The resin bonding provides structural integrity and enhances the filtration performance, making them suitable for a variety of applications, including water treatment, chemical processing, and pharmaceutical industries.

Heres a detailed breakdown of what resin-bonded filter cartridges contain:

1. Filter Media:

The primary material in resin-bonded filter cartridges is typically a type of fibrous filter medium, which can be made from various materials, including:

• Cellulose: Wood pulp or cotton fibers are commonly used for resin-bonded filters, especially in applications where a high level of filtration efficiency is needed.
• Synthetic Fibers: Polyester, polypropylene, or nylon fibers can also be used, providing enhanced durability, resistance to chemicals, and higher performance in certain applications.
• Glass Fiber: For high-performance filtration, glass fibers can be used as the filter media, especially when fine filtration is required.

The filter media is typically a porous mat or network of fibers that provides the surface area necessary for trapping particulate matter.

2. Resin Binder:

The resin binder is a key component that holds the fibers of the filter media together and gives the filter cartridge its shape and structural strength. The resin is typically a thermosetting resin that cures (hardens) when exposed to heat, creating a rigid and durable matrix. Common resins used in the bonding process include:

• Phenolic Resins: These resins are commonly used for their high temperature and chemical resistance.
• Epoxy Resins: Known for their excellent chemical resistance and durability.
• Polyester Resins: Used for their cost-effectiveness and good general resistance properties.
• Polyurethane Resins: Can be used for flexible applications, especially in more specialized filtration processes.

The resin helps to ensure that the filter maintains its shape, prevents media migration, and improves the overall integrity of the filter during filtration processes.

3. Pore Structure:

Resin-bonded filters are typically designed with a graded pore structure, meaning that the size of the pores varies across the depth of the filter. This means that the outer layers have larger pores to capture larger particles, while the inner layers have finer pores to capture smaller particles. The combination of the fibrous medium and the resin bond creates a filter with high dirt-holding capacity and consistent filtration performance.

4. Other Components:

Depending on the design and application, resin-bonded filter cartridges may also include other components such as:

• End Caps: Often made of materials like polypropylene or stainless steel, these provide structural integrity and ensure that the filter can be easily installed into filtration systems.
• Support Core: In some designs, there may be a central core (made of stainless steel, polypropylene, or another material) that supports the filter structure and ensures that the cartridge holds its shape under pressure.
• Seals and Gaskets: Made of elastomers like silicone, EPDM, or nitrile rubber, these seals are used to prevent leaks and ensure a tight fit when the filter cartridge is installed in the filtration housing.

5. Advantages of Resin-Bonded Filters:

• High Dirt Holding Capacity: The graded pore structure and fibrous nature allow these filters to hold a large amount of particulate matter before requiring replacement.
• High Filtration Efficiency: They can filter out fine particles with high precision.
• Cost-Effective: Generally, resin-bonded filters are less expensive than some other filter types, making them a popular choice for many industries.
• Durability: The resin bond provides structural strength, making these filters resistant to breakage or degradation under normal operating conditions.
• Wide Range of Applications: Resin-bonded filters can be used in both liquid and gas filtration applications, and they are suitable for a wide range of chemicals, solvents, and temperatures.

6. Applications:

• Water Treatment: Used in drinking water, industrial water, and wastewater treatment systems to remove suspended solids, sediments, and particulate matter.
• Food and Beverage Filtration: For filtering liquids such as juices, , , and other beverages.
• Chemical and Pharmaceutical Filtration: Used in filtration of chemicals, solvents, and pharmaceutical formulations to remove contaminants and particulates.
• Oil and Gas: For filtering oil, lubricants, or gases in various industrial processes.
• Air and Gas Filtration: In some applications, resin-bonded filters are used for the filtration of air or gases to remove particulates and contaminants.
